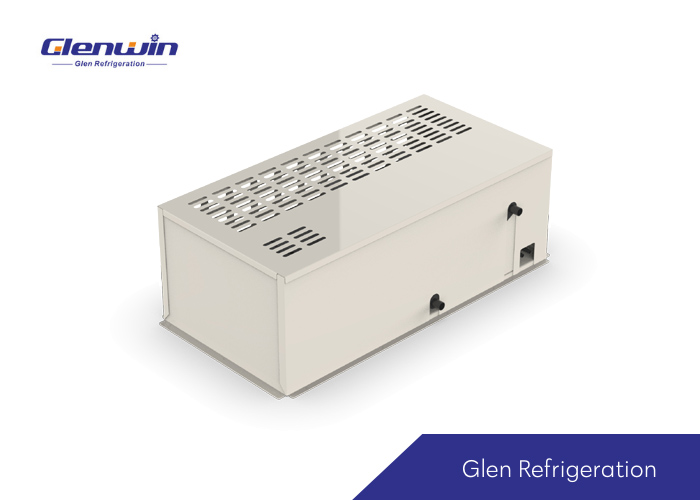

The indoor condensing unit is designed for indoor plug-in installation. It is also called plug-in condensing unit. According to different condensers, it has air cooled indoor condensing unit and water-cooled indoor condensing unit. It adopts Sanyo horizontal rotary refrigeration compressor, which has the features and benefits of low height and compact size, which can ensure the largest effective volume of the display chiller and freezer.

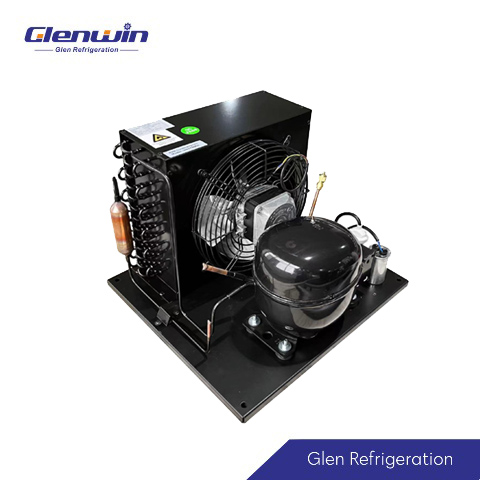

The air cooled indoor condensing unit widely used in meat display cabinet, self-contained display cabinet, glass door upright chiller and freezer, cake display cabinet and so on. It composed of Sanyo rotary refrigeration compressor, EBM motor, high efficient condenser, receiver, high & low pressure switch, accumulator, one-way valve, run capacitor, start capacitor and replay and other commercial refrigeration components. The cooling capacity range is from 0.75HP to 3HP.
The 0.75HP condensing unit adopts Sanyo rotary refrigeration compressor C-RHN75E4A.
The 1HP condensing unit adopts Sanyo rotary refrigeration compressor C-RHV161L4AAL
The 1.5HP condensing unit adopts Sanyo rotary refrigeration compressor C-RHN110E4A.
The 2HP condensing unit adopts Sanyo rotary refrigeration compressor C-3RH322L4AAL.
The 2.5HP condensing unit adopts Sanyo rotary refrigeration compressor C-3RHV359L4AAL.
The 3HP condensing unit adopts Sanyo rotary refrigeration compressor C-3RH463L4AAL

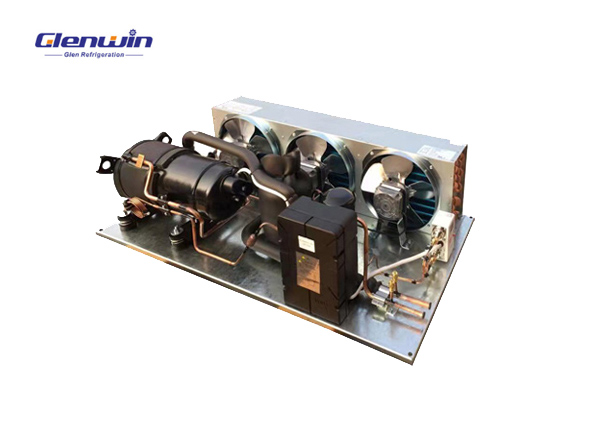

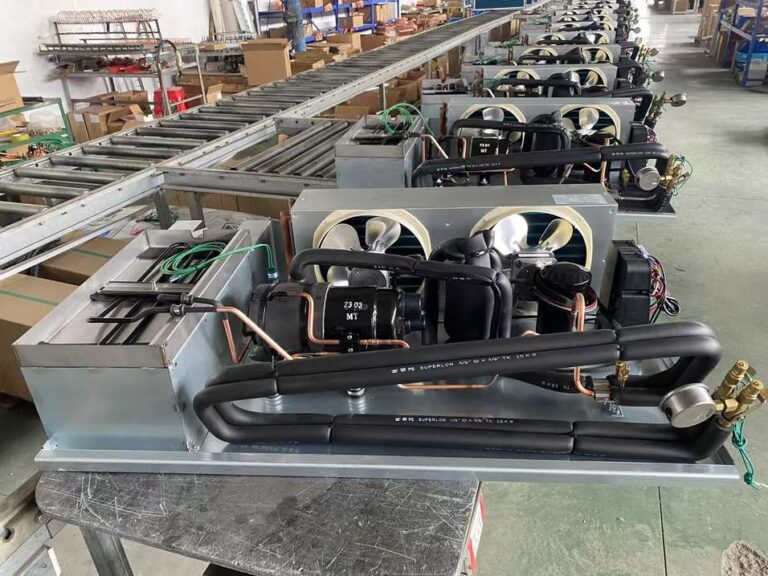

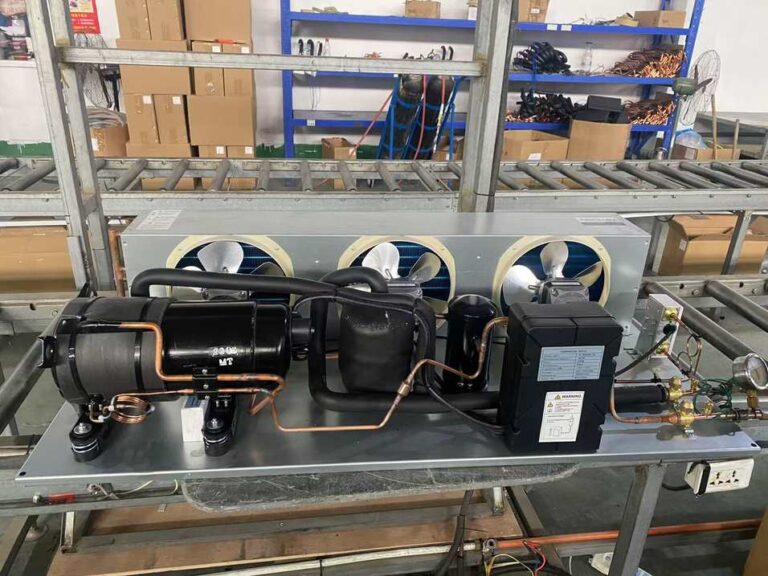

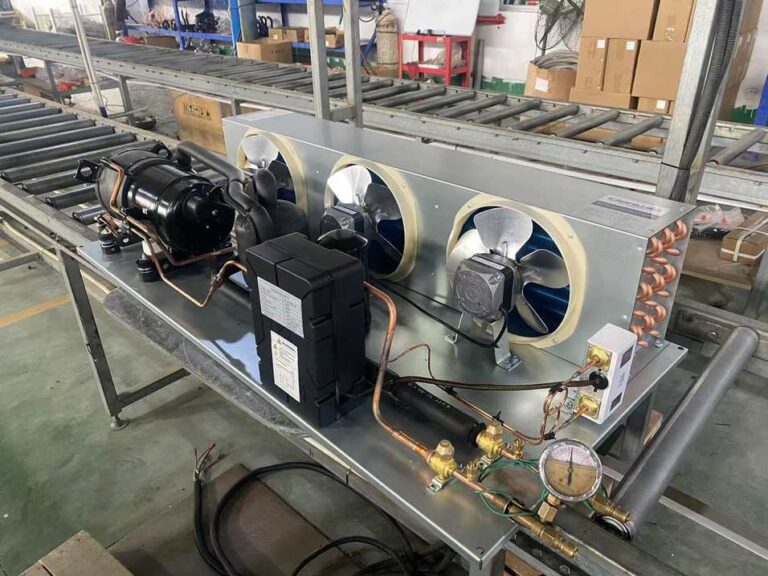

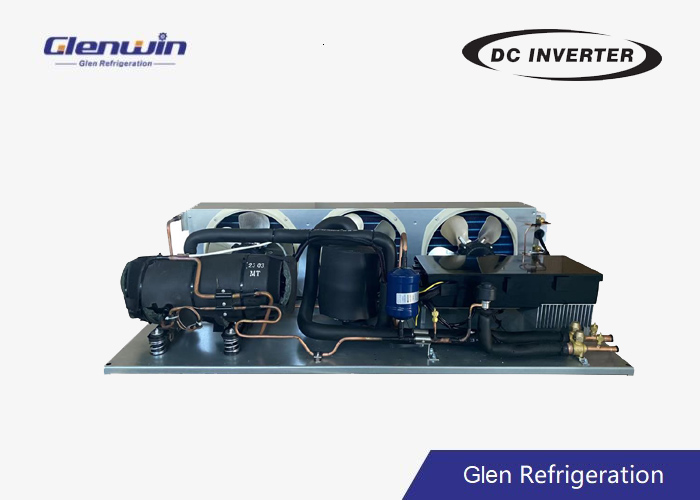

The air cooled indoor condensing unit (Horizontal condensing unit) consists of Sanyo rotary refrigeration compressor, EBM motor, copper tube condenser, receiver, high and low pressure switch, receiver, electric box and so on.
Sanyo, a leading manufacturer of rotary vane compressor for air conditioner and commercial refrigeration system.

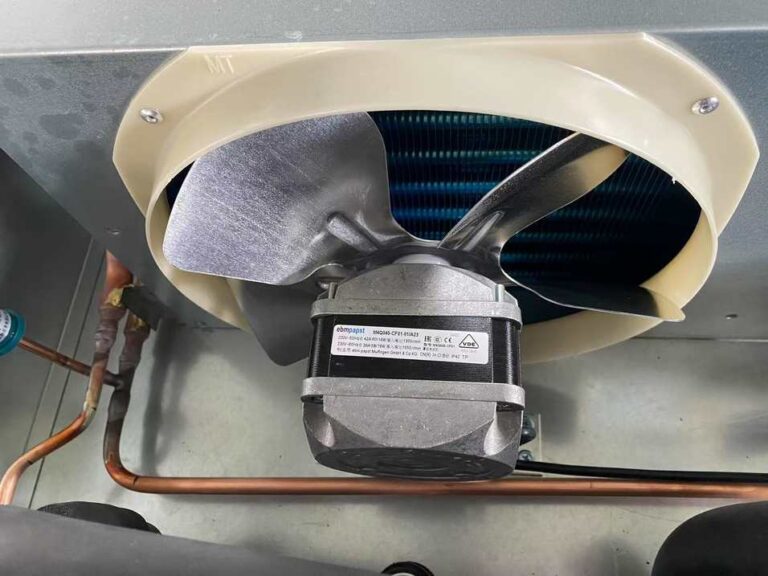

EBM, Top 1 manufacture of fan motor with high efficiency and high reliability for commercial refrigeration in the world.

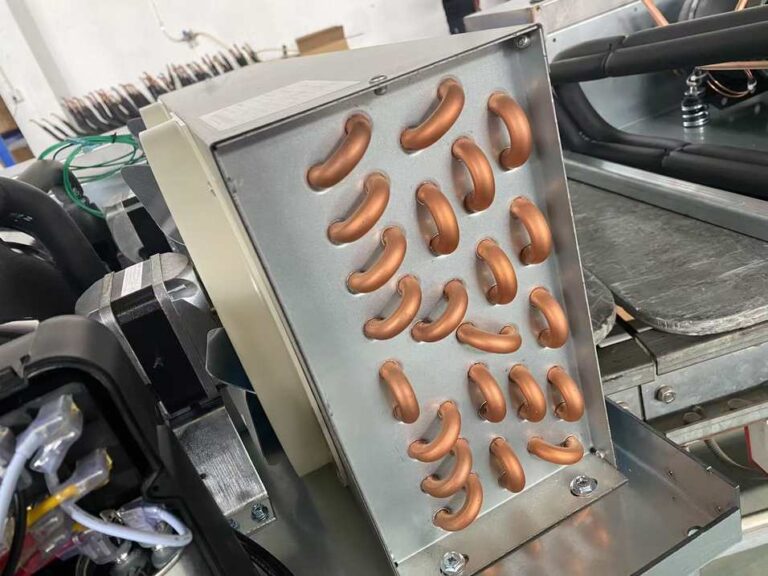

Thickened copper tube to increase the reliability of condensing unit; increase the fin space to prevent dirty blockage.
Accumulator, installed before the compressor, is to storage the liquid refrigerant to prevent liquid strike.
Protect the compressor when the refrigeration system is lack of refrigerant or high pressure is over-high.
Specially designed the spring and rubber mounting kits for horizontal rotary refrigeration compressor to reduce vibration.
The electric box includes start capacitor, run capacitor and relay. The function of start capacitor is to give a extra electric push to start.

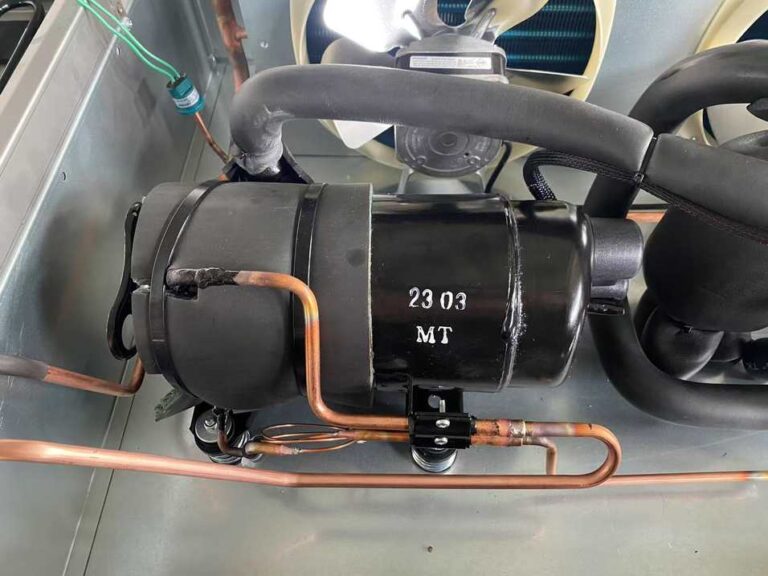

Liquid injection compressor can reduce the compressor motor temp. and discharge temp. to increase the reliability.
Except the 220V~240V/50HZ horizontal condensing unit, Glen refrigeration also offers 220V/60HZ and 380V/50HZ air cooled horizontal condensing unit. Glen Refrigeration also can customize different commercial refrigeration condensing units according to customer’s requirements. Feel free to contact with us if you are interested.

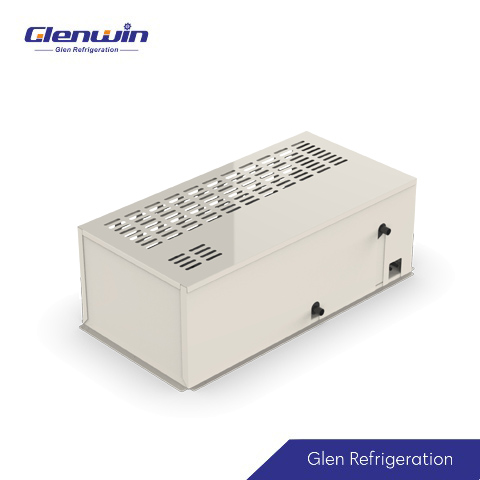

The water-cooled condensing unit is a kind of commercial refrigeration condensing unit, which use brazed plate heat ex-changer as condenser. It composed of Sanyo rotary refrigeration compressor, brazed plate heat ex-changer, receiver, accumulator, filter dryer and high & low pressure switch, electric box and so on. Compared with air cooled condensing unit, the water cooled condensing unit has higher efficiency. If you are looking for a high efficient water cooled condensing unit in China, Glen refrigeration will be your best choice.
The fixed speed water-cooled condensing unit adopts Sanyo fixed speed refrigeration compressor and brazed plate heat ex-changer.

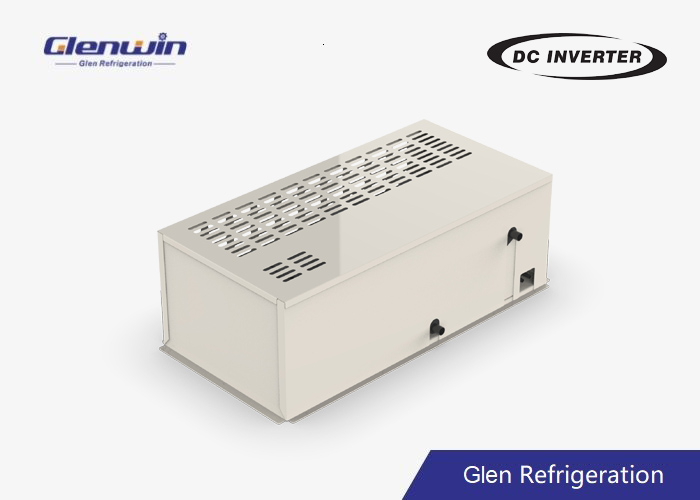

The variable speed water-cooled condensing unit adopts Sanyo variable speed refrigeration compressor and brazed plate heat ex-changer.
