Top-mounted Monoblock Packaged Refrigeration Unit

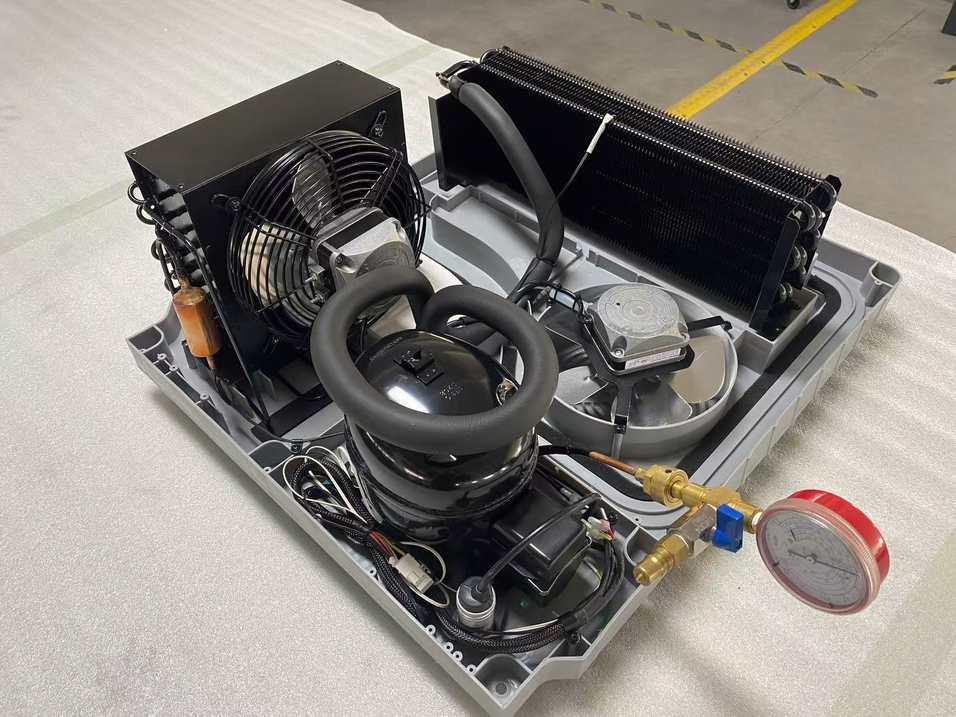

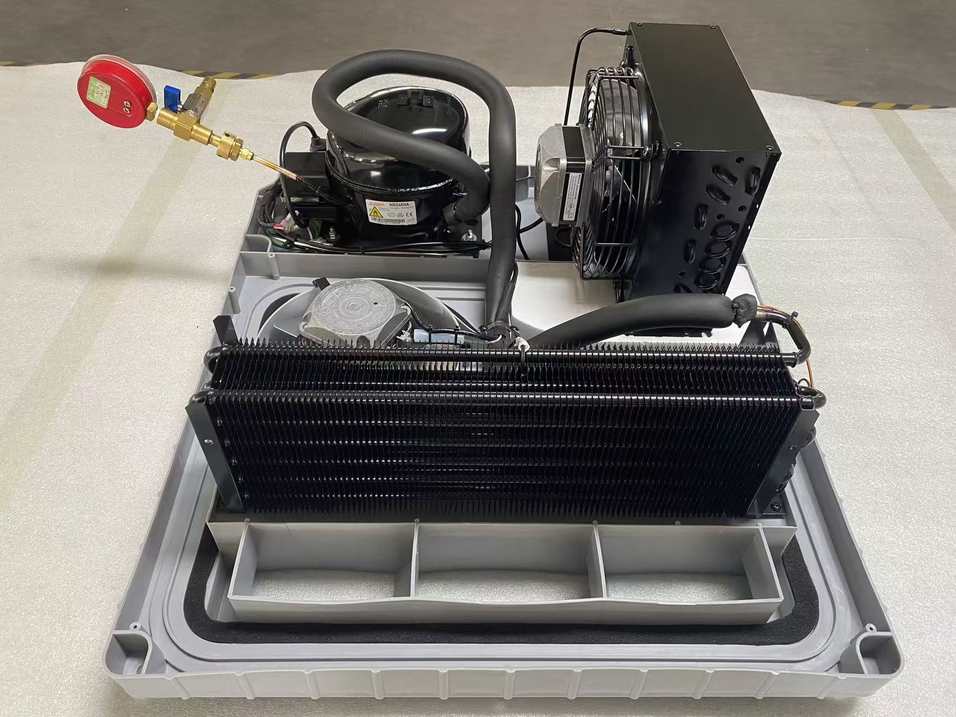

The top-mounted monoblock refrigeration unit is a packaged refrigeration system unit, which installed on the ceiling of commercial refrigerators, freezers and compliant cabinets. It is also called plug-in refrigeration unit. The advantages of easy installation, high quality and reliability standards ensure to the customers an innovative, technologically product. The top-mounted monoblock refrigeration unit is including the refrigeration compressor, condenser, condenser fan, expansion device, evaporator, evaporator fan and other refrigeration components.

What Does Monoblock Refrigeration Unit Bring us?

Natural Gas R290
Energy Saving
Low GWP Gas
Low Noise
Easy Install

Monoblock Refrigeration Unit Features

ECO&EFFICIENCY

  • High efficiency Danfoss and Cubigel piston (reciprocating) compressors (Energy saving up to 10%)
  • Top brand electric fan motor EBM motor with energy saving
  • Air or electric heater defrosting

INSTALLATION

  • The integrated unit makes it easy to install in the commercial fridge and freezer.
  • The standard sized base and holes ensures quick installation.
  • Standard connectors plus customized optional wiring kit

PERFORMANCE

  • Professional design of refrigeration system ensures the excellent and consistent performance in all conditions of use.
  • The famous brand reciprocating compressor Danfoss and Cubigel ensures the enough cooling capacity in MBP or LBP.
  • Better soundproofing makes the monoblock unit more quieter, ensures the commercial chiller and freezer low noise.

QUALITY

  • Professional manufacturer of monoblock refrigeration units ensures the quality.
  • New abs injected base for higher insulation, strength and better water drainage.
  • Automatic evaporating of the condensing water and anti corrosion treated coil.
Previous
Next

Your Best Packaged Refrigeration Unit Supplier In China

Glen Refrigeration focuses on R&D, production and sales of refrigerator condensing unit, monoblock refrigeration unit, indoor condensing unit and outdoor condensing unit and other commercial refrigeration unit. According to different installation, it has top-mounted monoblock refrigeration unit, side-mounted monoblock refrigeration unit and bottom-mounted monoblock refrigeration unit. We have professional technical team, advanced laboratory and testing equipment, standard production workshop, and other processing equipment, dedicating to provide “one-stop”service for all customers.

Why Choose Glen Refrigeration?

Professional Manufacturer

Glen Refrigeration is a leading manufacturer of monoblock refrigeration unit in China.

Customization and “One-stop” service

Custom refrigeration system for commercial refrigeration is available.

Main Products of Top-mounted Monoblock Unit

Monoblock Cooling Unit

The monoblock cooling unit is one type of monoblock refrigeration units. The operating temperature of monoblock cooling unit is from -2°C to +10°C. So it widely used in upright chiller, commercial kitchen cooler, and other cooling cabinets.

  • Refrigerant: R134A and R290
  • Compressor: Cubigel or Embraco or Secop
  • Motor: EBM
  • Operating temp. range: -2°C to +10°C
  • Defrost: Fan cooling or Hot gas
  • Power supply: 220V~240V/50HZ, 220V/60HZ, 115V/60HZ
  • Suitable for chiller volume: 400L/700L/1400L

Monoblock Freezer Unit

The monoblock freezer unit is special designed for low temperature commercial freezer. The operating temperature is from -22°C to -25°C. So it widely used in upright freezer, commercial kitchen freezer, and other freezing cabinets.

  • Refrigerant: R404A and R290
  • Compressor: Embraco or Secop
  • Motor: EBM
  • Operating temp. range: -22°C to -25°C
  • Defrost: Hot gas or Electric heater
  • Power supply: 220V~240V/50HZ, 220V/60HZ, 115V/60HZ
  • Suitable for freezer volume: 400L/700L/1400L

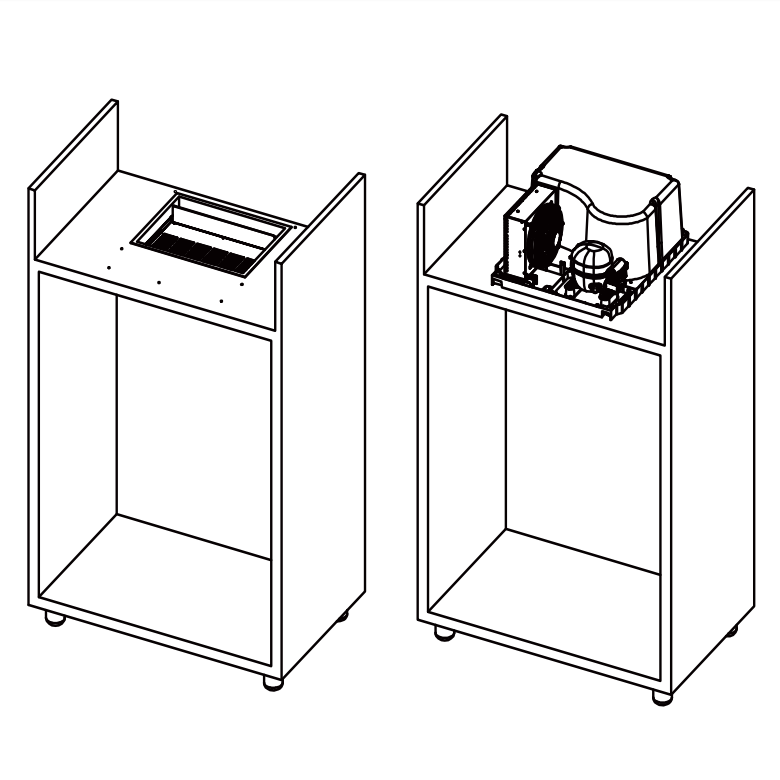

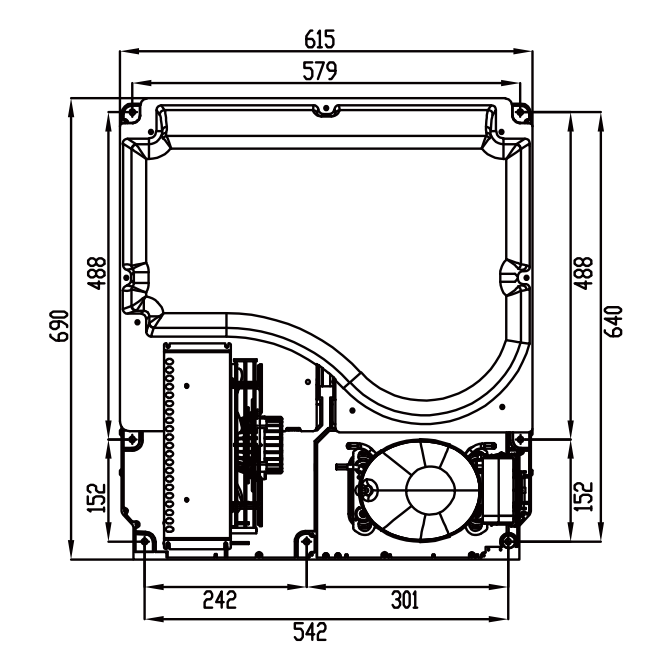

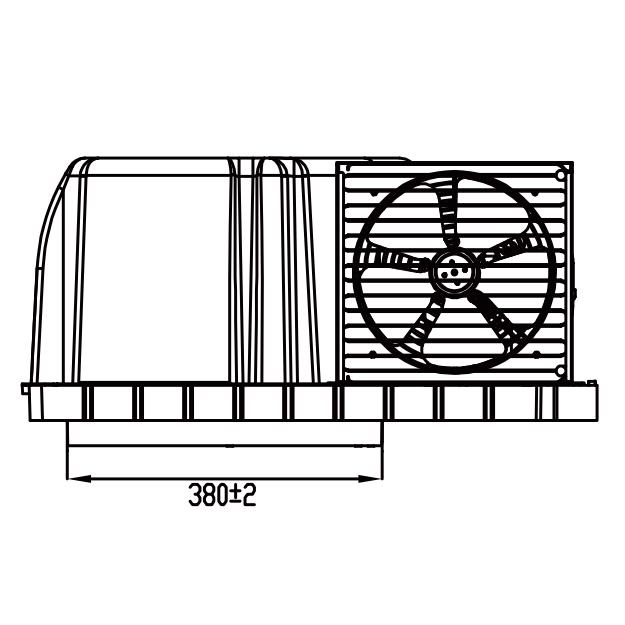

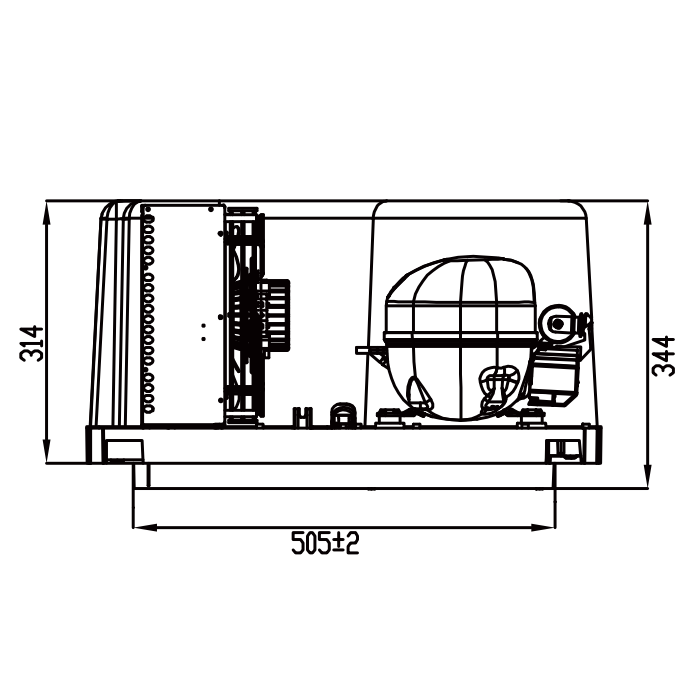

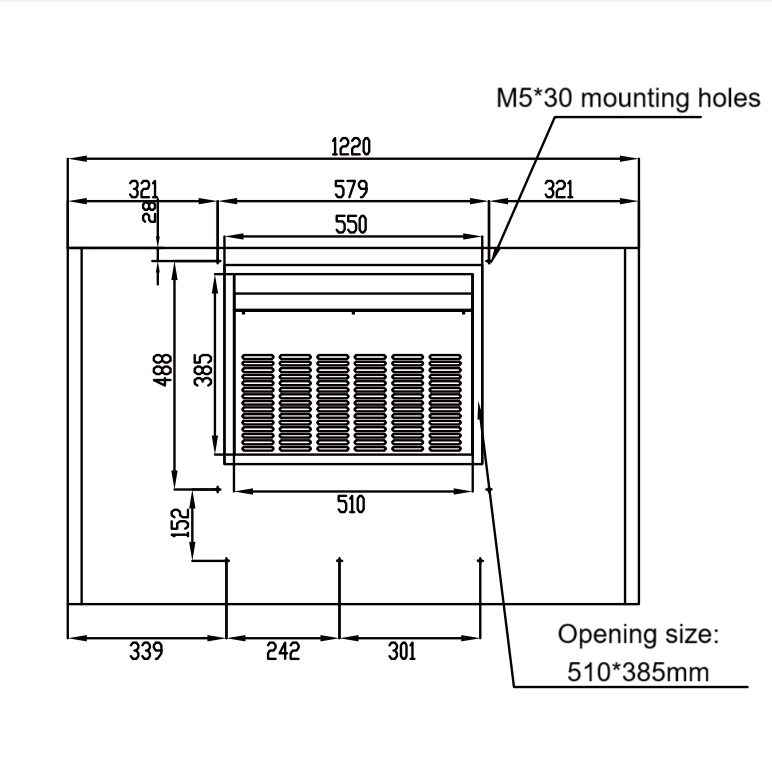

Monoblock Refrigeration Unit Mounting Diagram

R290 Top-mounted Monoblock Refrigeration Unit

Glen Refrigeration has been leading the way in energy efficiency and ECO friendly for many years. We started the design of R290 refrigeration system from 2015 and produce the R290 monoblock refrigeration units from 2018. We proudly offer R290 monoblock refrigeration unit that reduce refrigerant emissions and decrease their impact on the ozone layer and climate change.

  • R290 Monoblock Cooling Unit SAM11U
  • R290 Monoblock Cooling Unit SAM7U
  • R290 Monoblock Freezer Unit SAL10U
  • R290 Monoblock Freezer Unit SAL5U

R290 Top-mounted Packaged Refrigeration Unit

The model SAM11U is a R290 monoblock packaged refrigeration unit designed for upright display chiller, stainless steel upright cabinet. It uses Embraco compressor or Cubigel compressor.

  • Model: SAM11U
  • Power supply:220V~240V/50HZ
  • Refrigerant: R290
  • Cooling capacity: 1100W
  • Operating temp. range: -2°C to +10°C
  • Defrost: Fan cooling
  • Dimension(L*W*H): 685mm*615mm*300mm
  • Suitable for chiller volume: 1400L

R290 Top-mounted Packaged Refrigeration Unit

The packaged refrigeration unit SAM7U is a R290 monoblock cooling unit designed for upright display chiller and stainless steel upright cabinet. It uses Embraco compressor or Cubigel compressor.

  • Model: SAM7U
  • Power supply:220V~240V/50HZ
  • Refrigerant: R290
  • Cooling capacity: 700W
  • Operating temp. range: -2°C to +10°C
  • Defrost: Fan cooling
  • Dimension(L*W*H): 685mm*615mm*300mm
  • Suitable for chiller volume:700L

R290 Top-mounted Packaged Refrigeration Unit

The top-mounted packaged refrigeration unit SAL10U is a R290 monoblock freezer unit designed for upright freezers and stainless steel cabinets and so on. It uses Embraco compressor or Secop compressor.

  • Model: SAL10U
  • Power supply:220V~240V/50HZ
  • Refrigerant: R290
  • Cooling capacity: 960W
  • Operating temp. range: -18 to -22°C
  • Defrost: Hot gas
  • Dimension(L*W*H): 685mm*615mm*300mm
  • Suitable for chiller volume:1400L

R290 Top-mounted Packaged Refrigeration Unit

The top-mounted monoblock freezer unit SAL5U is a R290 monoblock freezer unit designed for upright freezers and stainless steel cabinets and so on. It uses Embraco compressor or Secop compressor.

  • Model: SAL10U
  • Power supply:220V~240V/50HZ
  • Refrigerant: R290
  • Cooling capacity: 539W
  • Operating temp. range: -18 to -22°C
  • Defrost: Hot gas
  • Dimension(L*W*H): 685mm*615mm*300mm
  • Suitable for freezer volume:700L

Glen Refrigeration Catalog Download

Monoblock Refrigeration Unit

Outdoor Condensing Unit

Outdoor Condensing Unit

Indoor Condensing Unit

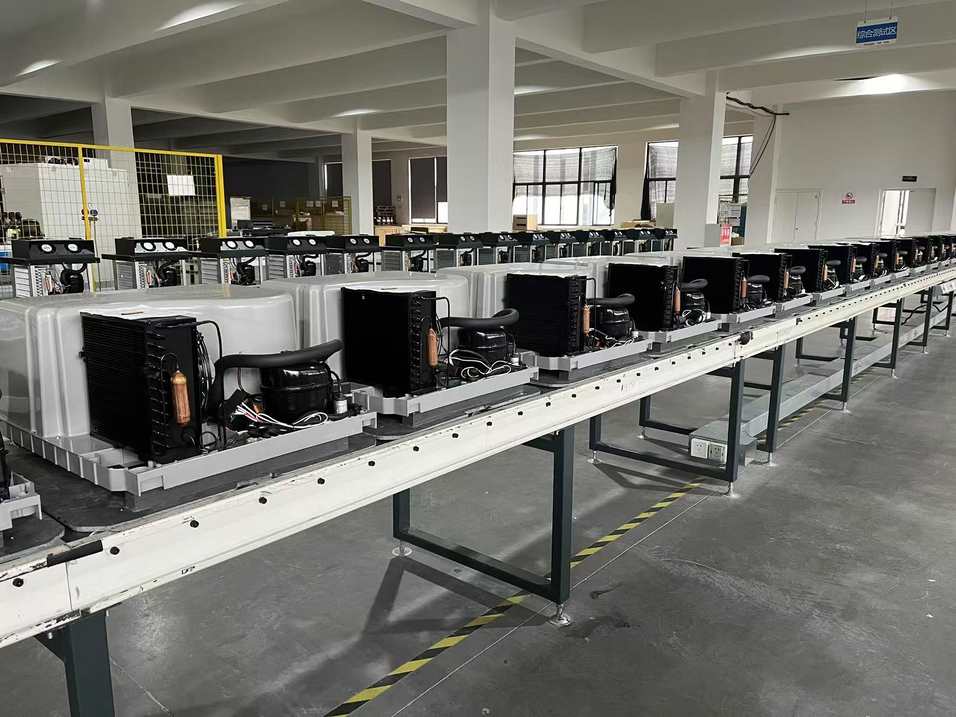

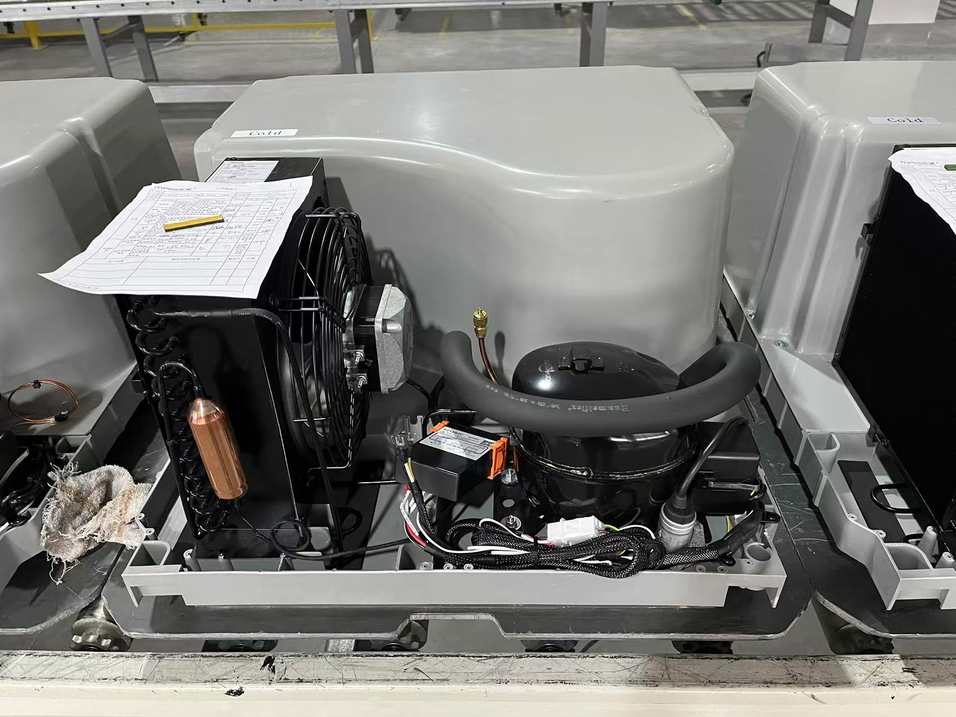

Monoblock Refrigeration Unit Production Line

Frequently Asked Questions

Yes, we are professional manufacturer and supplier of monoblock refrigeration unit. Except the monoblock refrigeration unit, we also a professional condensing unit manufacturer, including the refrigerator compressor condensing unit, air cooled condensing unit, water-cooled condensing unit, indoor condensing unit and remote condensing unit and other commercial refrigeration condensing units.

Glen Refrigeration’s chiller refrigeration unit and freezer refrigeration unit adopt Secop compressor and Cubigel compressor, which are all famous refrigeration compressor manufacturers.

Generally, the top-mounted monoblock refrigeration unit use the EBM motor, if you need other brand motor, for example, WEIGUANG motor, we can customize according to your requirements.

Yes, all of the monoblock refrigeration units are equipped with the temp.control device. Generally we will suggest you to our temp.control device.

For the chiller refrigeration unit, if you need to use other brand temp.control, it is OK. But for the freezer refrigeration unit, it is better to use our temp. controller. Because the control for freezing is more complex, and our temp.control device is design based on our rich experience of design the monoblock refrigeration unit for freezing.

Generally, the monoblock chiller unit uses hot gas defrost mode; while the monoblock freezing unit uses electric heater defrost mode.

Glen refrigeration professional supplies:

  • Refrigerator compressor condensing unit
  • Air cooled condensing unit
  • Water-cooled condensing unit
  • Indoor condensing unit
  • Remote condensing unit
  • Horizontal condensing unit
  • Commercial refrigeration unit
  • Small condensing unit
  • Low temperature condensing unit
  • Medium temperature condensing unit
  • self contained refrigeration units
  • R404A condensing unit
  • R290 condensing unit
  • Variable speed condensing unit
  • Inverter condensing unit
  • Air conditioning compressor
  • Refrigeration compressor
  • ……

Before sample request, please contact with us by email info@greehvacr.com and share with us more specifics of your requirements. We will suggest you the right products or provide you a refrigeration system solution according to your special requirements. Then we can move to next step of sample request.

Yes, sample order and small orders are all accept. Firstly, we can customize according to customer’s special requirements. Secondly, if you are manufacture, we believe that our products can make your products more competitive. If you are distributor, we believe that we can expand your products range and get more business.

Contact Glen Refrigeration Now!

Glen Refrigeration can customize according to customer’s different requirements. Before sample request, an excel form will be sent to you, which can help us to know more specifics of your requirements. Then we will provide a right solution based on your requirements.
